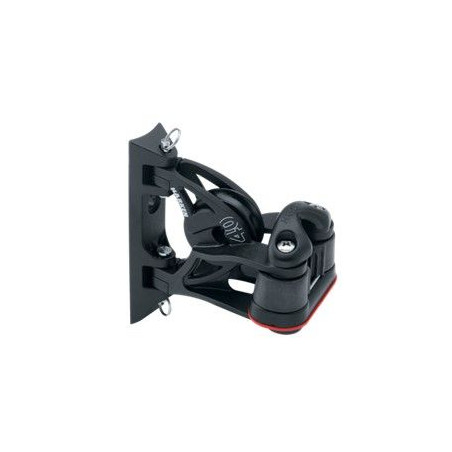

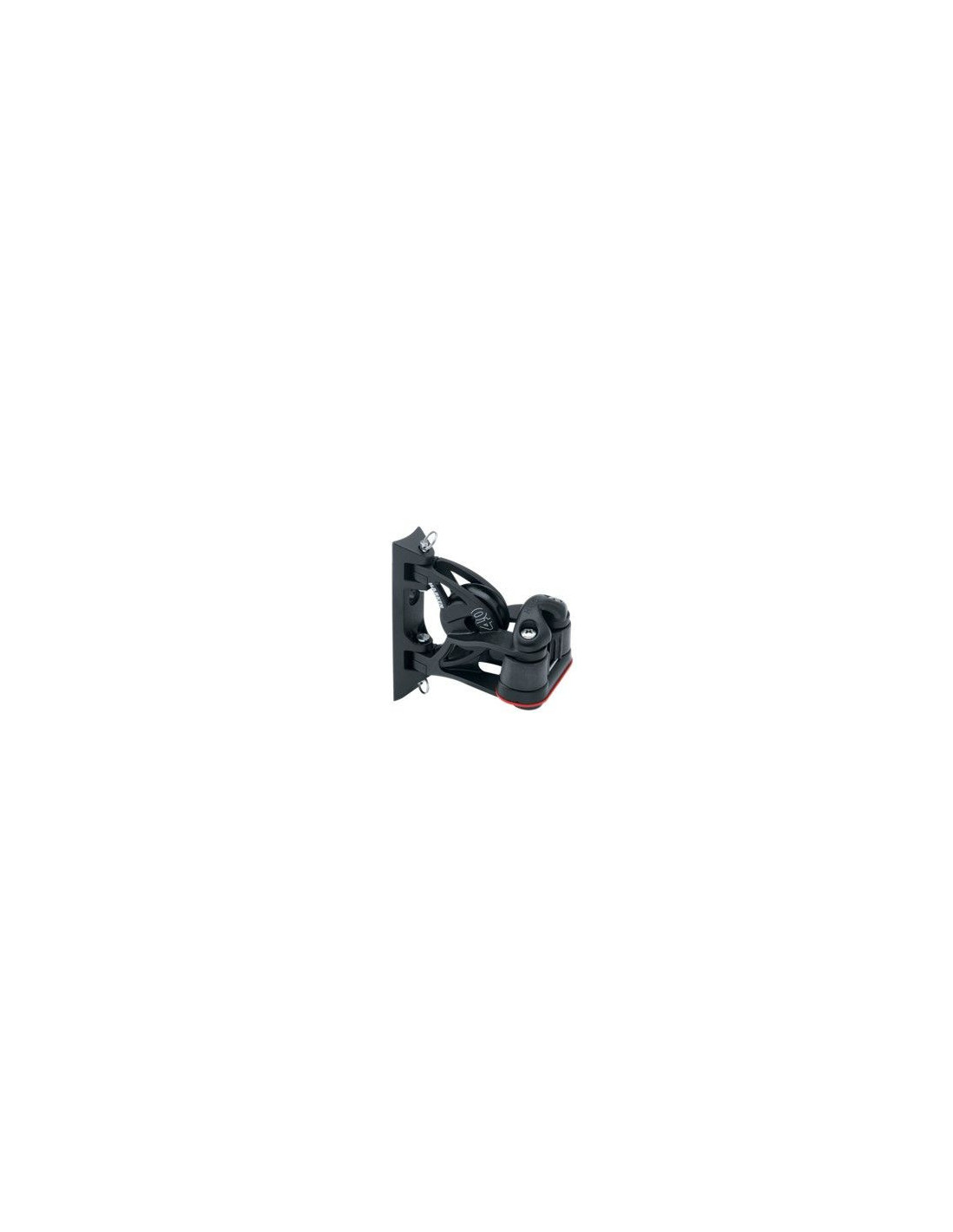

HARKEN - 40 MM PIVOT LEAD CARBO WITH CAM-MATIC 365

The blocks, pivoting high-resistance equipped with flow control valves are used on large yachts for the adjustment of the halyards, and dinghies and catamarans from the beach to the adjustment of the mainsheet directly from the boom.

The spacing of the holes and the size of the rivets are identical to those of the blocks of the Classic series, allowing for an easy upgrade.

The choke can be locked in two different positions, up or down.

Can be used as becket.

Sheave Ø (mm)40 mm

Length (mm)112 mm

Weight (g)157 g

Max line Ø in (mm)10 mm

Maximum working load (kg)91 kg

Breaking load (kg)430 kg

Maximum working load and breaking load based on loads of the choke.
